Argonaut Bogie

Introduction

Up to 85 ton capacity
• Double oscillating bogies for heavy duty lowbed trailers.
• Suitable for arduous off-highway operation.
• Range of standard models and purpose built units to suit all applications.

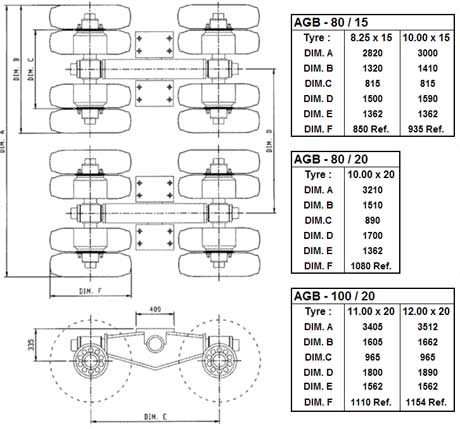

AGB Bogie


Tyre size Wheel Fitting Capacity Capacity Model
No. Stud x PCD Ton @ 20km/h Ton @ 40km/h Number
Twin
 8.25R15
ISO 10 x 225
 60 46
AGB-80
10.00R15 70 52
12.00R20
ISO 10 x 335
 78 60
AGB-100
12.00R24 85 65
Single
 24.00R21 85 65
24.00R20.5 85 65

Notes:
1) Please contact York for detailed general arrangement drawings.
2) All wheel fittings are ISO with M22 wheel stud. M24 is optional for ABG-100.

back to top


Dreadnought Bogie

Introduction

Heavy Duty Walking Beam Suspension

20 - 40 ton capacity
• High articulation for off-highway applications.
• 8 Stud/10 stud or 20" & 24" trilex hubs.
• Pedestal brackets for bolted or welded mounting to trailer chassis.
View Article

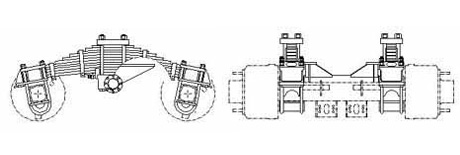

Low Mount



DN7 Low Mount

Axle Beam @ Axle Capacity Tyre Capacity @ 80km/h (highway) Capacity @ 40km/h (Off Road) Model Number
5" Round @ 12.0 Ton 10.00R20 24.0 Ton 20.0 Ton DN7
6" Square @ 12.0 Ton 10.00R20 24.0 Ton 20.0 Ton DN7S
5" Round @ 15.0 Ton 12.00R20 30.0 Ton 24.0 Ton DN7
6" Square @ 16.0 Ton 12.00R20 30.0 Ton 24.0 Ton DN7S

DN8 Low Mount

Axle Beam @ Axle Capacity Tyre Capacity @ 80km/h (highway) Capacity @ 40km/h (Off Road) Model Number
6" Square @ 16.0 Ton 12.00R24 32.0 Ton 28.0 Ton DN8S
6" Round @ 17.5 Ton 12.00R24 35.0 Ton 32.0 Ton DN8
6" Round @ 20.0 Ton 12.00R24 40.0 Ton 32.0 Ton DN8

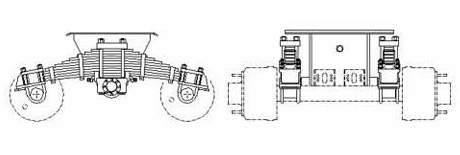

High Mount



DN7 High Mount

Axle Beam @ Axle Capacity Tyre Capacity @ 80km/h (highway) Capacity @ 40km/h (Off Road) Model Number
5" Round @ 12.0 Ton 10.00R20 24.0 Ton 20.0 Ton DNH7
6" Square @ 12.0 Ton 10.00R20 24.0 Ton 20.0 Ton DNH7S
5" Round @ 15.0 Ton 12.00R20 30.0 Ton 24.0 Ton DNH7
6" Square @ 16.0 Ton 12.00R20 30.0 Ton 24.0 Ton DNH7S

DN8 High Mount

Axle Beam @ Axle Capacity Tyre Capacity @ 80km/h (highway) Capacity @ 40km/h (Off Road) Model Number
6" Square @ 16.0 Ton 12.00R24 32.0 Ton 28.0 Ton DNH8S
6" Round @ 17.5 Ton 12.00R24 35.0 Ton 32.0 Ton DNH8
6" Round @ 20.0 Ton 12.00R24 40.0 Ton 32.0 Ton DNH8


back to top


Multi-Lift Suspensions

Introduction

• 12 to 18 ton capacity.
• Reliable proven design.
• High strength components.
• Lightweight design.
• Simple maintenance procedures.
• Components to achieve extended service life.
• Tapered bushes.
• ADR approved.
• Overslung or Underslung configuration.


Specifications

Overslung
Underslung

75mm Wide Spring 75mm Wide Spring
View YTE 75
    (8 Leaf Spring -12.0 Ton Capacity)
View YTE 75/90
    (10 Leaf Spring - 15.0 Ton Capacity)
View YTE 75
    (8 Leaf Spring - 12.0 Ton,
    10 Leaf Spring - 15.0 Ton Capacity)
View YTE 75/90
    (10 Leaf Spring - 15.0 Ton Capacity)

90mm Wide Spring 90mm Wide Spring
View YTE 90
    (10 Leaf Spring - 18.0 Ton Capacity)
View YTE 90
    (10 Leaf Spring - 18.0 Ton Capacity)

back to top
