AIR SUSPENSIONS













Introduction

Shock Absorber
  Heavy duty shock absorbers incorporating high damping characteristics helps eliminate wheel hop.

Fully contained within the suspension, mounted between the front hanger and the spring seat they are protected from road damage. This also allows for a more compact design giving a shorter stroke which reduces heat and increases service life. For most applications the shock absorber can also act as a check strap.

Pivot Bush
  The exceptionally tough, metal encased Pivot Bush chosen for its very compact design, virtually eliminates rubber extrusion thus greatly extending its effective working life. The bonding of the bush material to the outer case and inner sleeve ensures the bush works in shear and cannot rotate. This compact design also permits front bracket reinforcing to be closer to the point of side load and reduces unwanted side movements.
Spring
  The shape of the spring contains the suspension geometry. Tecair I has a standard rating of 12 tonne which is specially designed for arduous applications.
Air Spring
  Using quality large diameter, low pressure air springs allow a reduction of the required air pressure at typical axle loads. A 4 bar system fed from a 6 bar air reservoir more readily maintains the correct ride height and trailer stability. With the air spring including an internal bump stop, a long service life is expected.
Axle Seat
  The design philosophy of the axle seat for Tecair I is allowing for ease of fitment of the shocker during servicing.
Axle
  The axle, which serves as a torsion beam, is manufactured from 127mm diameter seamless manganese alloy steel, its high strength and resistance to bending characteristics are a critical part of the design of Tecair air suspensions.
- 16mm wall thickness suitable for highway operations.
- 19mm wall thickness suitable for off-road operations.



Tecair 1
Air Suspension Modules 11-12 Ton Capacity

Technical Specification
Capacity 12 Tonnes Per Module
Standard Ride Height 200mm and 400mm
Other ride heights available upon request
Standard Spring Center 960mm @ 1,850mm Axle Track Length
Standard Airbag Center 800mm @ 1,850mm Axle Track Length
Tare Weight (Approximate) 200mm Ride Height Model - 210Kg
400mm Ride Height Model - 228Kg
Integrated Side Lift - 58Kg

Tecair 1 - 200RH - Standard

Tecair 1 - 400RH - Standard

Tecair 1 with Integrated Axle Lift

Air Suspension with Old Integrated Axle Lift
Ride Height (mm) Axle Lift Model Number
200 With TA1/11/200L
Without TA1/11/200NL
400 With TA1/11/400L
Without TA1/11/400NL

Air Suspension with New Bolt Axle Lift
Underslung Ride Height (mm) Model Number (w/o lift) Model Number (w bolt lift)
200 TA1-11U200RS TA1-11U200RS00E1
300 TA1-11U300RD
TA1-11U300RS
TA1-11U300RD00E1
TA1-11U200RS00E1
350 TA1-11U350RS TA1-11U350RS00E1
400 TA1-11U400RS TA1-11U400RS00E1
450 TA1-11U450RS TA1-11U450RS00E1

Air Suspension Modules 11-12 Ton Capacity - OSR & US SQ Beam

Technical Specification
Capacity 12 Tonnes Per Module
Standard Spring Center 960mm @ 1,850mm Axle Track Length
Standard Airbag Center 800mm @ 1,850mm Axle Track Length
Approx. Tare Weight 210 kg

Overslung Round 127mm Beam
Underslung Ride Height (mm) Model Number (w/o lift) Model Number (w bolt lift)
500 TA1-11V500RS TA1-11V500RS00E1
600 TA1-11V600RS TA1-11V600RS00E1

Underslung Square 150mm Beam
Underslung Ride Height (mm) Model Number (w/o lift) Model Number (w bolt lift)
200 TA1-11U200SS TA1-11U200SS00E1
220 TA1-11U220SS TA1-11U220SS00E1
250 TA1-11U250SS TA1-11U250SS00E1
280 TA1-11U280SS TA1-11U280SS00E1
300 TA1-11U300SS TA1-11U300SS00E1
330 TA1-11U330SS TA1-11U330SS00E1
380 TA1-11U380SS TA1-11U380SS00E1
400 TA1-11U400SS TA1-11U400SS00E1
430 TA1-11U430SS TA1-11U430SS00E1
480 TA1-11U480SS TA1-11U480SS00E1

Notes:

  1. Tecair 1 Air Suspension - 5" Round Axle Beam (16mm standard wall thickness, 19mm optional wall thickness).
  2. Standard spring center and air bag center are for axles with 1,850mm track length and tyre size 10.00R20 or 11.00R22.5. Other axle track length or bigger tyre size will affect spring center and air bag center.
  3. All axles are been fitted with long s-cam

Tec Air 1 & 2 Approved ADR No's
Single Axles 8163SS
Tandem Axle 8164SS
Tri-Axle 8162SS




Tecair 2

Air Suspension Modules 9- 10 ton Capacity

Technical Specification
Capacity 9 Tonnes Per Module
Standard Spring Center 960mm @ 1,850mm Axle Track Length
Standard Airbag Center 818mm @ 1,850mm Axle Track Length
Tare Weights (Approx) 162Kg per Module complete

Underslung 5" Round Beam
Underslung Ride Height (mm) Model Number (w/o lift) Model Number (w bolt lift)
235 TA2-09U235RS TA2-09U235RS00E1
260 TA2-09U260RD TA2-09U260RD00E1
285 TA2-09U285RD
TA2-09U285RS
TA2-09U285RS00E1
TA2-09U285RS00E1
310 TA2-09U310RS TA2-09U310RS00E1
335 TA2-09U335RS TA2-09U335RS00E1
360 TA2-09U360RS TA2-09U360RS00E1

Overslung 5" Round Beam
Underslung Ride Height (mm) Model Number (w/o lift) Model Number (w bolt lift)
420 TA2-09V420RS TA2-09V420RS00E1
445 TA2-09V445RS TA2-09V445RS00E1
470 TA2-09V470RS TA2-09V470RS00E1
495 TA2-09V495RS TA2-09V495RS00E1
520 TA2-09V520RS TA2-09V520RS00E1
545 TA2-09V545RS TA2-09V545RS00E1
600 TA2-09V600RS TA2-09V600RS00E1

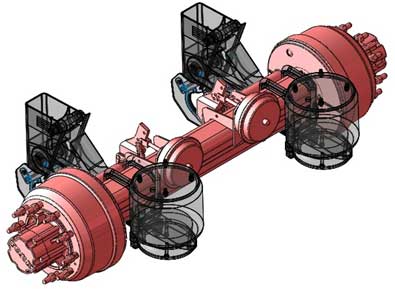

Underslung 6" Square Beam
Underslung Ride Height (mm) Model Number (w/o lift) Model Number (w bolt lift)
205 TA2-09U205SS TA2-09U205SS00E1
230 TA2-09U230SS TA2-09U230SS00E1
225 TA2-09U225SS TA2-09U225SS00E1
280 TA2-09U280SS TA2-09U280SS00E1
305 TA2-09U305SS TA2-09U305SS00E1
330 TA2-09U330SS TA2-09U330SS00E1

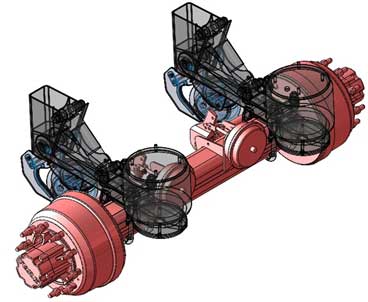

Overslung 6" Square Beam
Underslung Ride Height (mm) Model Number (w/o lift) Model Number (w bolt lift)
425 TA2-09V425SS TA2-09V425SS00E1
450 TA2-09V450SS TA2-09V450SS00E1
475 TA2-09V475SS TA2-09V475SS00E1
500 TA2-09V500SS TA2-09V500SS00E1
525 TA2-09V525SS TA2-09V525SS00E1
550 TA2-09V550SS TA2-09V550SS00E1
600 TA2-09V600SS TA2-09V600SS00E1

Tec Air 1 & 2 Approved ADR No's
Single Axles 8163SS
Tandem Axle 8164SS
Tri-Axle 8162SS




Tecair Z

Air Suspension Modules 9 Ton Capacity with 5" Round Beam

Technical Specification
Capacity 9 Tonnes Per Module
Standard Spring Center 960mm @ 1,850mm Axle Track Length
Standard Airbag Center 860mm @ 1,850mm Axle Track Length
Tare Weights (Approx) 167Kg per Module complete
Technical Information
  • Pivot bush has a metal inner sleeve and bonded to outer rubber with free floating anchor point for spring.
  • Pivot bolt subjected to pure tensile load and all shear and shock load absorbed by bush.
  • Pivot rubber bush configured for good resilience and shock proof performance.
  • The Parabolic spring as the trailing arm hassmooth suspension performance and excellent roll stiffness characteristics.
  • Durable Shock absorber incorporating high damping characteristic and friendly compliance.
  • Designed for user friendly installation with structural rigidity.
  • Fully fledged air lifting system with improved ground clearance.
  • Low compact weight.
  • Proven spring seating arrangement for easy shock absorber fitment and spring clamping.
  • Reliable Air spring performance for enhanced stability.
  • Compact installation arrangement.
  • Ease of wheel alignment process to cater 20mm axial adjustment

Overslung Ride Height (mm) Model Number (w/o lift) Model Number (w bolt axle lift)
350 TAZ-09V350RS TAZ-09V350RS00E1
375 TAZ-09V357RS TAZ-09V375RS00E1
400 TAZ-09V400RS TAZ-09V400RS00E1

Underslung Ride Height (mm) Model Number (w/o lift) Model Number (w bolt lift)
170 TAZ-09U170RS TAZ-09U170RS00E1
200 TAZ-09U200RS TAZ-09U200RS00E1
225 TAZ-09U225RS TAZ-09U225RS00E1


TORQUE SETTINGS
PIVOT BOLT 1400Nm
DAMPER BOLTS 250Nm
AIRSPRING MOUNTING BOLTS 70Nm
AIRSPRING TOP PLATE STUDS 35Nm
U BOLT ITEM 6 820Nm




Duratrac (Fixed Welded Beam)

Technical Specification
Capacity 9-10 Tonnes Per Module
Standard Spring Center 220mm up to 460mm
Other ride height available on request
Axle Seat Suits 127mm diameter round beam
Tare Weights (Without lift) 120Kg (depending on right height)
Options Axle lift, Pneumatic Kits, Dump Kit
Raise/Lower/Hold, Pressure Rentention Kit,
Axle Load Indicator Kit

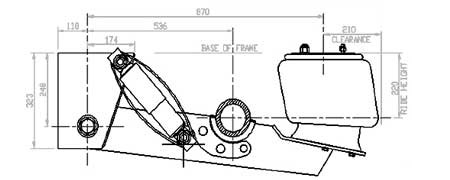

Underslung
Part No Description
63630117 220mm Ride Height Underslung (Drum)
63630118 240mm Ride Height Underslung (Drum)
63630119 260mm Ride Height Underslung (Disc)
63630120 260mm Ride Height Underslung (Drum)
63630121 300mm Ride Height Underslung
63630128 300mm Ride Height Underslung (Disc)
63630122 340mm Ride Height Underslung

Notes:

  1. Hanger Size shown not applicable to all Riding Heights.
Overslung
Part No Description
63630123 360mm Ride Height Overslung
63630124 380mm Ride Height Overslung
63630125 420mm Ride Height Overslung
63630126 460mm Ride Height Overslung

Notes:

  1. Duratrac Air Suspension - 5" Round Axle Beam.
  2. Standard spring center and air bag center are for axles with 1,850 track length and tyre size 10.00R20 or 11.00R22.5. Other axle track length or bigger tyre size will affect spring center and air bag center.
  3. All axles fitted are with long camshaft.

Duratrac Approved ADR No's
  Std. Opt.
Single Axles 816355 8219SS
Tandem Axle 816455 8220SS
Tri-Axle 816255 8221SS




Tecair FB VRH

Overslung Suspension
Part No Model Description
63630045 FB VRH 360S KIT OVERSLUNG SEALED A/BAG
63630046 FB VRH 405S KIT OVERSLUNG SEALED A/BAG
63630047 FB VRH 450S KIT OVERSLUNG SEALED A/BAG
63630086 FB VRH 320S KIT OVERSLUNG SEALED A/BAG
63630113 FB VRH 420S KIT OVERSLUNG SEALED A/BAG

Notes:

  1. Tare Weight (Without Lift) - Approximate 130 kg depending on ride height

Underslung Suspension
Part No Model Description
63630108 FB VRH 100S KIT UNDERSLUNG SEALED A/BAG
63630042 FB VRH 190S KIT UNDERSLUNG SEALED A/BAG
63630043 FB VRH 235S KIT UNDERSLUNG SEALED A/BAG
63630044 FB VRH 280S KIT UNDERSLUNG SEALED A/BAG
63630112 FB VRH 330S KIT UNDERSLUNG SEALED A/BAG

Notes:

  1. Tare Weight (Without Lift) - Approximate 140 kg depending on ride height

Underslung Suspension - Disc Brake Axles
Part No Model Description
63630107 FB VRH 235S KIT U/SLUNG S/BAG AXLE 2980 (Pan19-1 disc brake)
63630109 FB VRH 280S KIT U/SLUNG S/BAG AXLE 2980 (Pan19-1 disc brake)

Notes:

  1. Tare Weight (Without Lift) - Approximate 125 kg depending on ride height

Tecair FB VRH ADR Approval No's.
  Std. Opt.
Single Axles 821955 816355
Tandem Axle 822055 816455
Tri-Axle 822155 816355

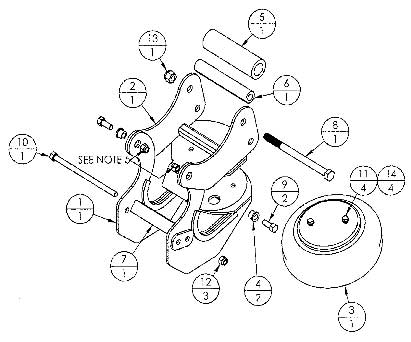

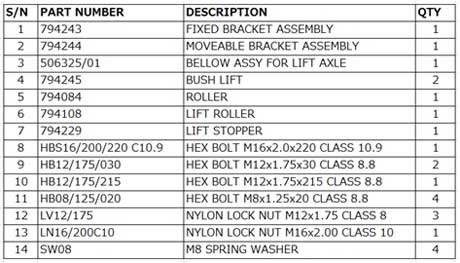

Axle Lift Model: TAL-E1

Features
  1. Common Axle Lift - suitable for All York Models Tec Air Suspensions
  2. Easy installation with a one bolt mounting .
  3. Low Maintenance - easy replacement of Air Lift Air bellow.
  4. Ease of wearing sleeve / roller replacement.
  5. TAL - E1 - allows quick lifting and lowering of axle.
  6. Long lasting air bellow - double bellow type.

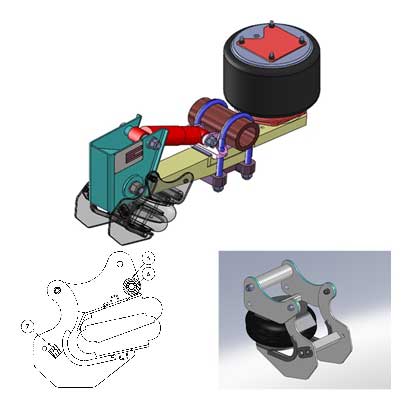

Installation of Item 5,6 & 7 for Tec Air - 1 - Air Suspension.

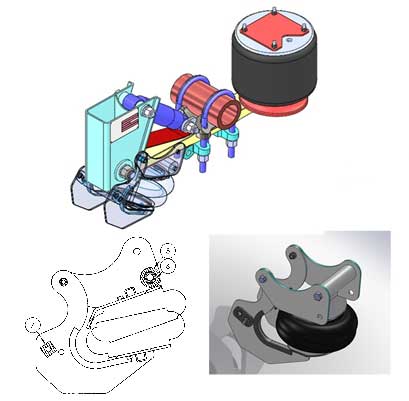

Installation of Item 5,6 & 7 for Tec Air - 2 - Air Suspension.

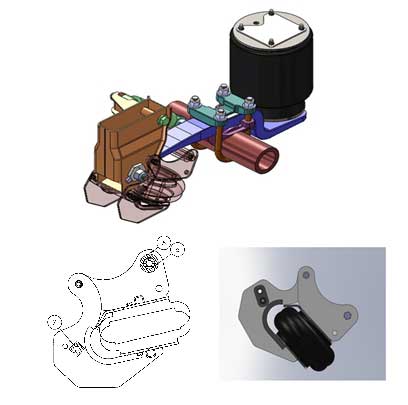

Installation of Item 5,6 & 7 for Tec Air - Z 9 ton - Air Suspension.
